Mobile & PC Alerts

Mobile Defender 1 Device:

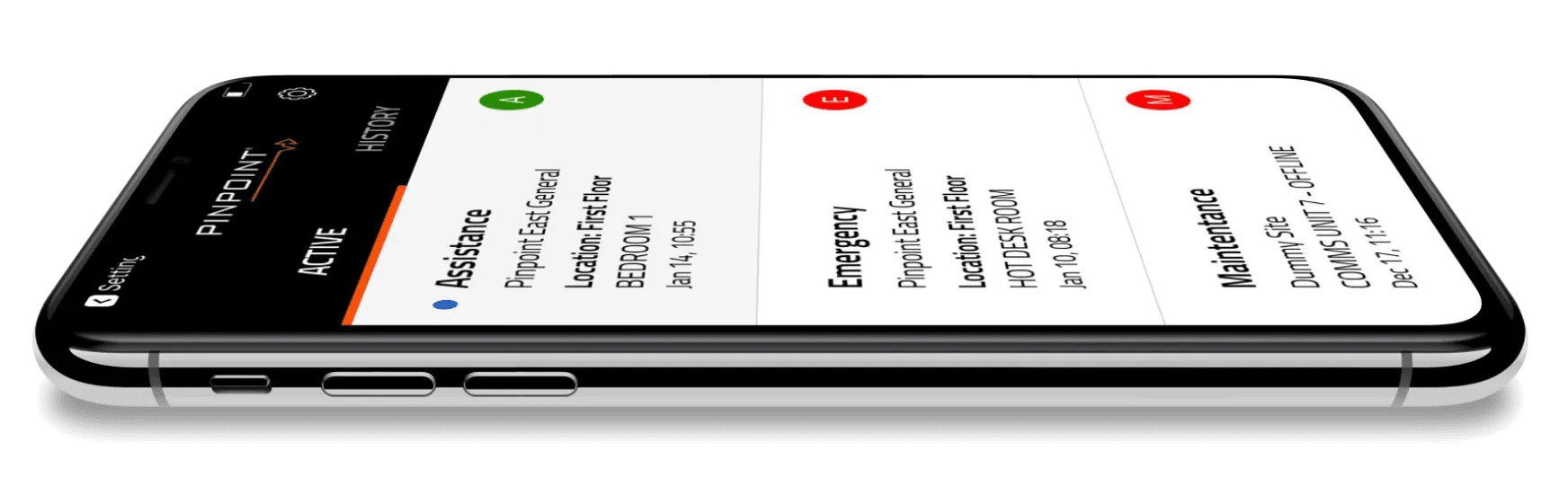

The Defender Phone 1 for Mobile Alert is a mobile phone pre-loaded with the Pinpoint Mobile Alert app. The app is designed to work in harmony with the existing Pinpoint System and notifies you of alarm and maintenance calls on your Pinpoint System - these can be received anywhere as long as you have a data signal. In addition, calls from several different systems can be received simultaneously, with an option to see an up-to-date overview of what is going on around you.

In order to restrict the use of the phone, the Pinpoint Launcher has been installed in tandem with “LockApp”. This means that the phone can only be used to access Pinpoint Mobile Alert. Any other attempt to access apps will request a PIN. You will need this PIN to access the settings and complete the initial setup of the phone. The LockApp PIN is “1111”, however this should be changed to a more secure code.


Mobile Defender 2 Device:

The Defender Phone 2 for Mobile Alert is a mobile phone pre-loaded with the Pinpoint Mobile Alert app. The app is designed to work in harmony with the existing Pinpoint System and notifies you of alarm and maintenance calls on your Pinpoint System - these can be received anywhere as long as you have a data signal. In addition, calls from several different systems can be received simultaneously, with an option to see an up-to-date overview of what is going on around you.

In order to restrict the use of the phone, the Pinpoint Launcher has been installed in tandem with “LockApp”. This means that the phone can only be used to access Pinpoint Mobile Alert. Any other attempt to access apps will request a PIN. You will need this PIN to access the settings and complete the initial setup of the phone. The LockApp PIN is “1111”, however this should be changed to a more secure code.


Pinpoint AC Alert:

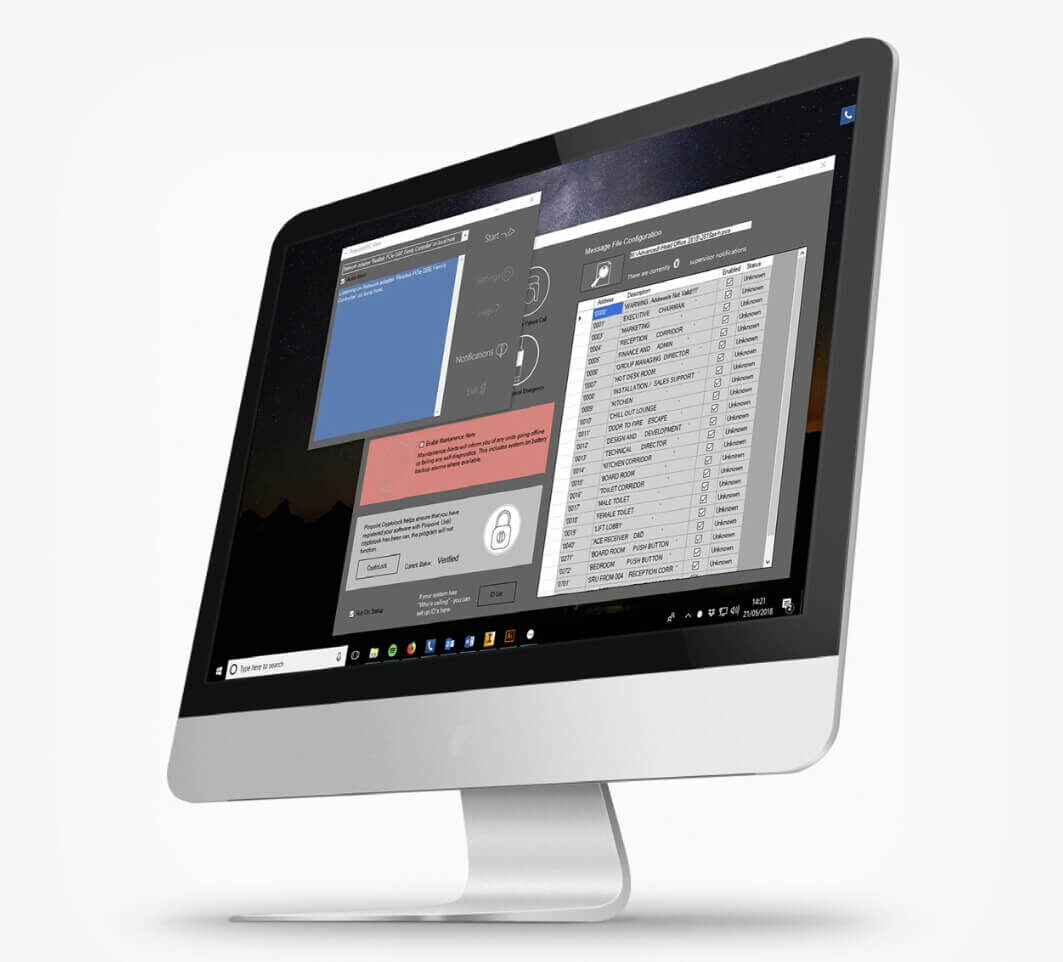

Pinpoint PC Alert is software that brings the Pinpoint System to your PC, giving the user all the advantages of having a personal Pinpoint Display shown conveniently on their computer screen. Not only can it lower response times to alarms, but it also offers customisation features - for example, alarm notifications received can be configured to suit the user’s needs. This allows the user to only be informed of events happening that are relevant to them. This is particularly suited to environments that are changing quickly, or often, where certain areas may require more monitoring by a particular member, or members, of staff.

PC Alert works by utilising an Ethernet interface to the separate Pinpoint network. Through this interface the computer can receive all alarm activity that takes place on the Pinpoint network. Once the program is installed and set up it will remain dormant in the system tray of the computer until it is required to inform the user of an event. PC Alert receives all Pinpoint messages and, if relevant, displays it to the user via a pop up window. PC Alert features both audio and visual alarms, both of which can be enabled or disabled for a range of alarm call levels and addresses.

When relaying alarm information each level of call will be displayed using a distinctly different colour, making it easily distinguishable at a glance. In addition to this, a familiar icon will be shown relating to the level of call, as well as displaying the location of the alarm and the date & time. This ensures that the notification can be read and responded to in the quickest and easiest fashion possible.

Mobile Defender 1 Device

Handset Size:
131mm x 70.8mm x 22mm

Weight:
235g

Toughness:
IP68 Certified & Military Spec 810G

Screen:
Asahi Toughened Glass,
IPS 4” FWVGA 854x480

Connectivity:
WCDMA/GSM

Bands:
2G: GSM 850/900/1800/1900
3G: WCDMA 850/2100MHz

Dual Sim:
SIM 1=2G + 3G, SIM 2=2G only

Speeds:
HSDPA: 7.2Mbps / HSUPA: 5.76Mbps
WLAN WIFI/IEEE 802.11 n/b/g

Bluetooth:
Bluetooth 4.0

OS:
Android OS 4.4 KitKat

NFC Chipset:
MT6605

CPU:
MTK6582 1.3GHz Quad Core

RAM:
1GB

ROM:
3GB

Ext Memory:
MicroSD Card - Up to 32GB

Battery:
2600mAh (10 hours talk �me, 2 weeks standby)

GPS Chipset: GPS: support A-GPS

Sensors:
G-sensor, light sensor, range sensor, compass, air-pressure

Radio Freq:
PMR 446MHz two way radio

Camera Spec:
Rear 8MP, Front 0.3MP, LED Flash,

2592 x 1944 Image.

Video Formats:
MP4/3G/MOV/MPEG/MKV/FLV

Audio Formats:
MP3/AMR/AAC/ASF/Ape/Fla

Image Formats:
JPEG/PNG/GIF/BMP





Mobile Defender 2 Device:

Handset Size:
149.5mm x 79.5mm x 18.6mm

Weight:
248g

Toughness:
IP68 Certified & Military Spec 810G

Screen:
Toughened Glass, IPS 4.5”
FWVGA 960 x 540px

Connectivity:
4G/3G/WCDMA/GSM

Bands:
2G: GSM 850/900/1800/1900MHz
3G: WCDMA 850/900/1900/2100MHz

Dual Sim: SIM 1=2G/3G/4G, SIM 2=2G only

Speeds:
HSDPA: 7.2Mbps / HSUPA: 5.76Mbps
WLAN WIFI/IEEE 802.11 n/b/g

Bluetooth:
Bluetooth 4.0

OS:
Android OS 5.1 Lollipop

NFC Chipset:
MT6375

CPU:
MTK6735 ARM Cortex-A53, 1.3GHz

RAM:
2GB

ROM:
16GB

Ext Memory:
MicroSD Card - Up to 32GB

Battery:
3500mAh

GPS Chipset:
GPS support A-GPS

Sensors:
G-sensor, light sensor, range sensor,
compass, air-pressure

Camera Spec:
Rear 13MP, Front 5MP, LED Flash,
2592 x 1944 Image Resolution,
Panorama Mode, 720p Video Recording

Video Formats:
MP4/3G/MOV/MPEG/MKV/FLV

Audio Formats:
MP3/AMR/AAC/ASF/Ape/Fla

Image Formats:
JPEG/PNG/GIF/BMP




Pinpoint AC Alert:

Model:
351.5 (Single Use User Licence excluding PC)

Requirements:
Pinpoint PC Alert requires a minimum of Windows 7:
- 1GHz or faster 32-bit (x86) or 64-bit (x64) processor
- 1GB RAM (32-bit) or 2GB RAM (64-bit)
- DirectX 9 graphics device with WDDM 1.0 or higher driver
- Ethernet connection
- Pinpoint System (inc. Pinpoint Etherbridge 396
