P2 Call Buttons

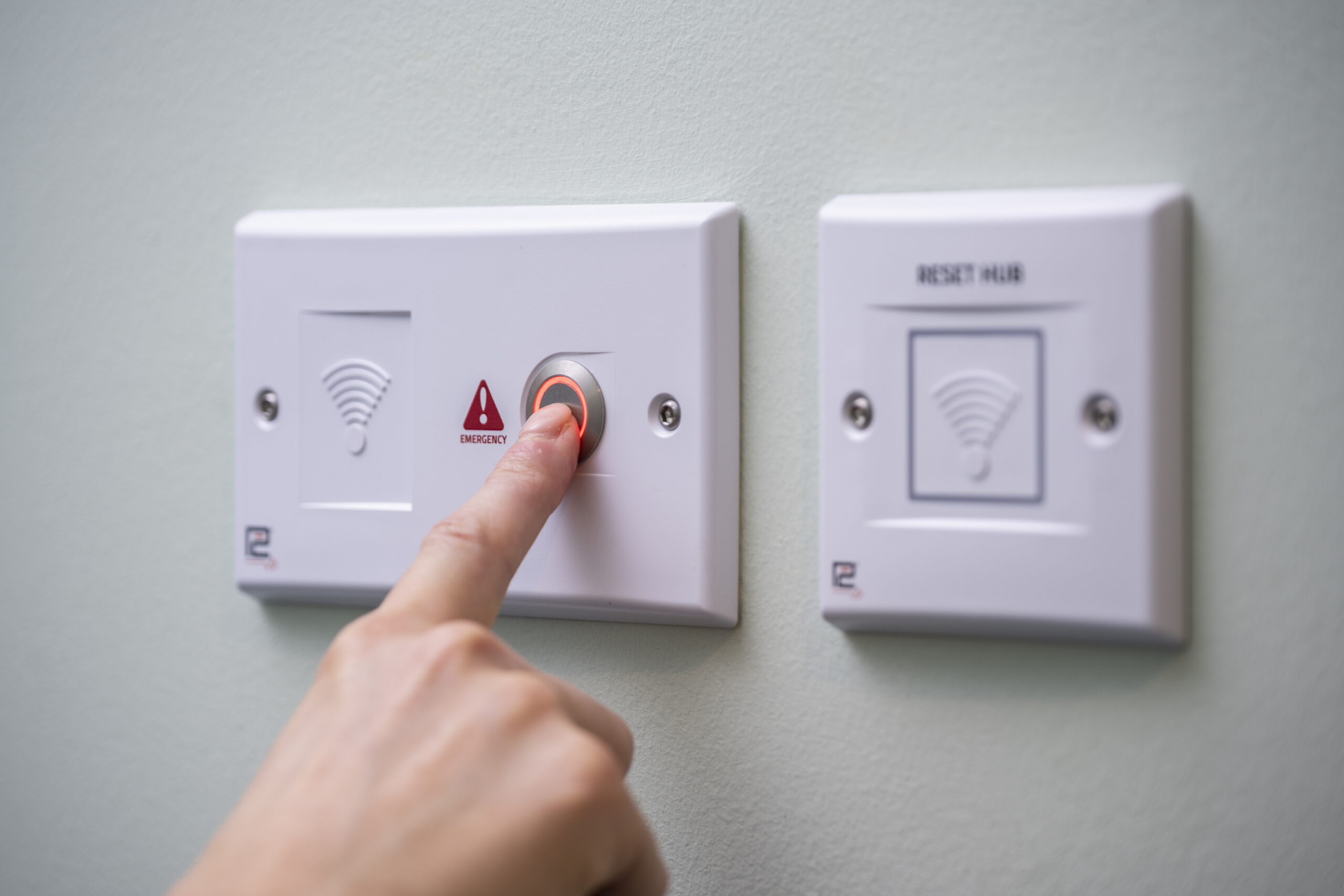

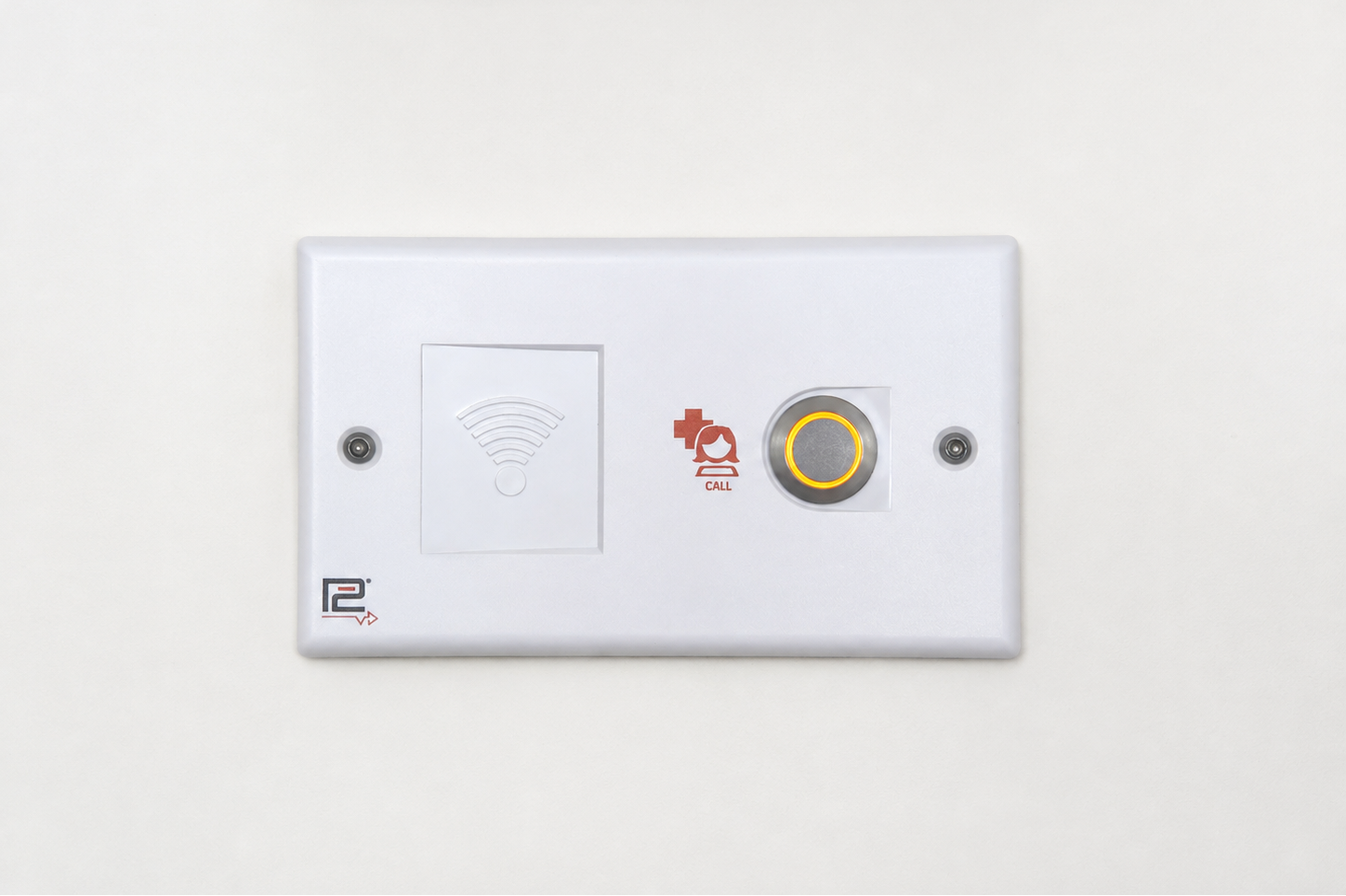

P2 Call Buttons are wall-mounted units with options for Emergency, Assistance and Patient calls. Installed where needed within the building, the P2 Call Button allows service users and staff to summon additional help when required.

Adaptable

Customised to meet the needs of the workplace, with options to include one, or both, Emergency and Assistance alarm buttons.

Design

Designed for peak performance, each staff attack system features its own processor.

Visuals

Colour coding clearly display the call level being activated, corresponding to the colour icons on display devices.

IP67 Certification

With IP67 certification offered as a variant, the P2 Patient Call Button can be sufficiently water resistant to be installed in bathroom facilities, delivering maximum coverage for high-risk units.

Keyless

A keyless design aids efficiency in high-risk situations where staff may need to swiftly arm, disarm or reset the system
Lightweight fobs, programmed with differing levels of control according to staff requirement manage Call Buttons
Reduces the risk of vandalism

Durable Design

Anti-vandal fascia

An anti-vandal fascia design prevents the risk of tampering or damage from daily wear and tear. The Call Button also incorporates Biomaster Antimicrobial Product Protection to prevent the spread of bacteria on the device surface.

Additional Features

LED metal buttons clearly highlight call-level

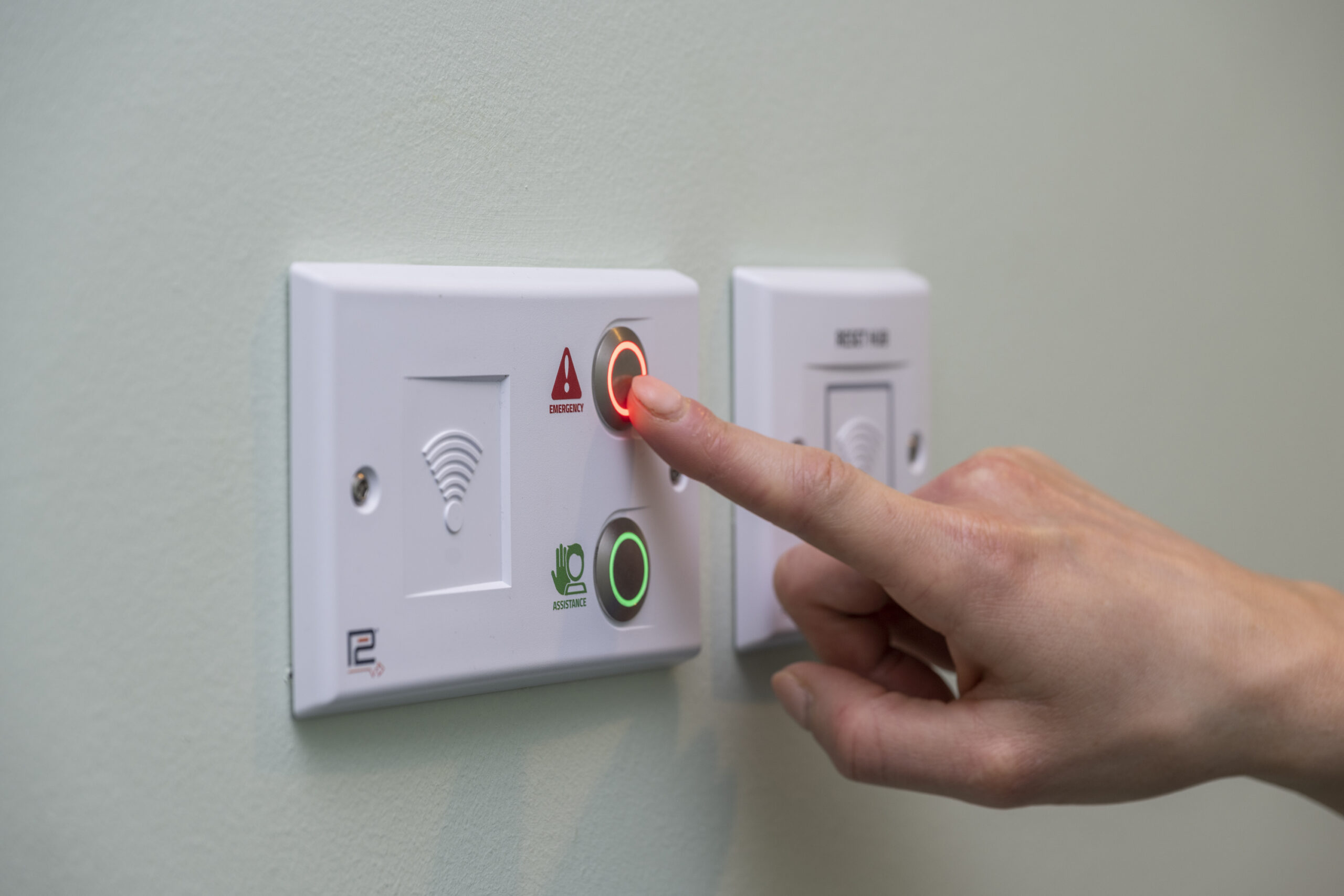

Up to two call levels available on single call button
Incorporates Antimicrobial Technology to prevent bacteria build up
Shared or addressable P2 Call Buttons available for precise location identification.

The P2 Call Button Series provides a way for staff or patients to initiate a call on the Pinpoint system from a static wall mounted point. The Call Buttons are available in a range of configurations - all units can either be a master with its own unique address and description in the message table - or may be slaved to another master unit in the same location (an IRU for example). The call buttons themselves may also be specified with a single button/call level or a dual button call level - as well as with or without RFID, Note - units specified without RFID MUST be slaved to a master unit.

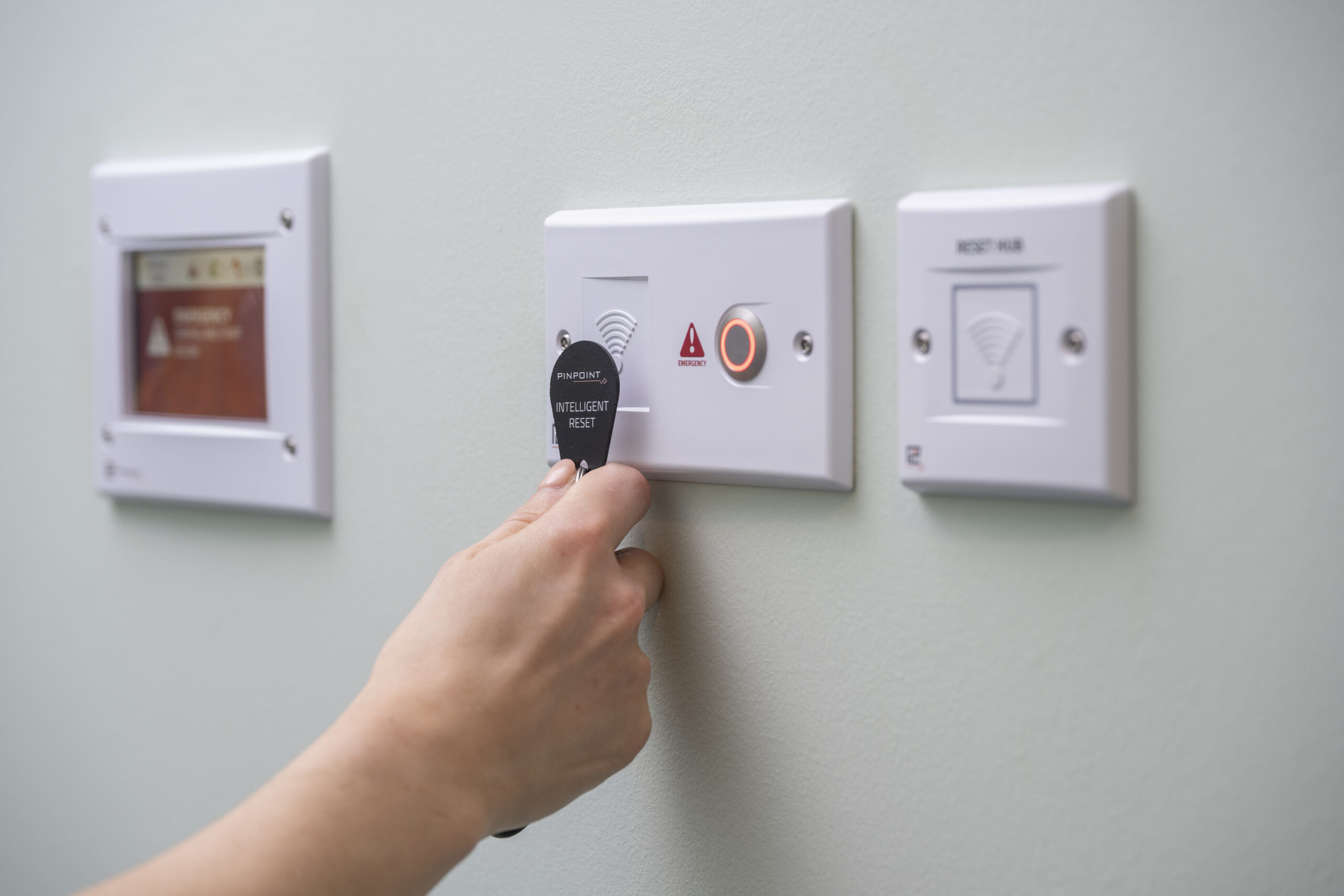

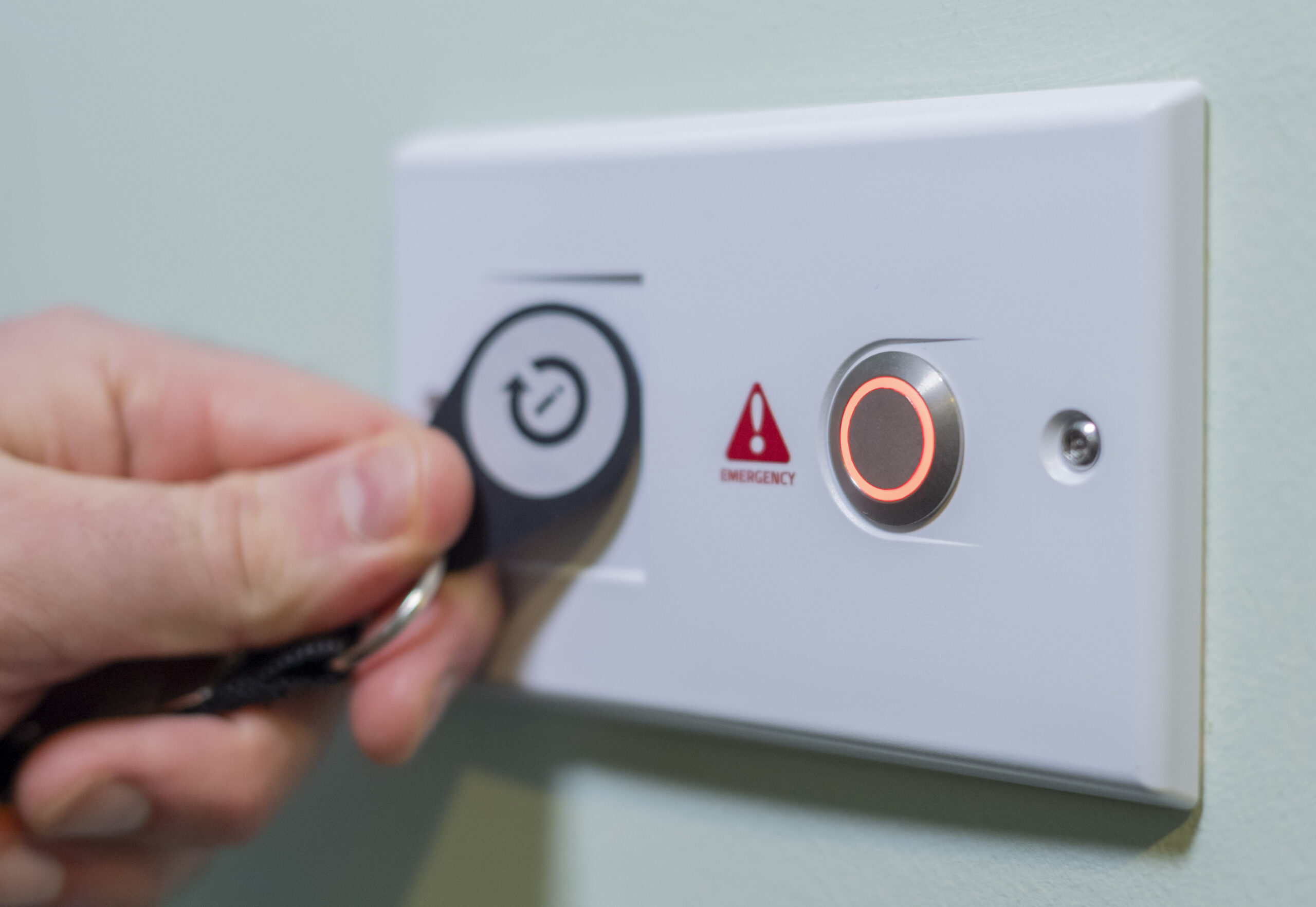

Units specified with the RFID functionality will be able to function with the Pinpoint RFID tags for resetting the call button and also arm/disarm functions. Intelligent reset tags which work with the Reset Hub may also be used with the Call Button and will have the same functionality (ie. Level specific reset) - or a general unit reset tag is available.

Mounting
The Call Button Unit should be mounted in a convenient place where it can be triggered quickly if needed as per containment specification and industry standards. Consideration should be given to the condition of the surface to which the unit is to be mounted: it should be free from damp and moisture, not be subject to any shock or vibration, and be secure enough to allow a good fixing for the Call Button Unit and box.

Design
The Call Button Series all feature a single part Polycarbonate/ABS fascia. RFID functionality on the unit is indicated by the presence of the symbol and indentation shown on the left hand side of the product. The product also features metal buttons with ring illumination- which fades in and out during idle operation of the unit in a “heartbeat” manner. The illumination of each button is matched to its call level and the button is labelled with the appropriate icon which is used throughout the range. If the unit is activated the appropriate button will then flash until it is reset at which point it will return to its “heartbeat” status. The omission of any apertures for keys - as well as the single piece convex design fascia and metal buttons mean that the P2 Call Button series is well suited to deployment in harsh environments.

P2 Series Button Product Codes
- P2 Addressable Assistance Call Button Unit D/G with RFID (Code: P2BUTAA)
- P2 Addressable Emergency Call Button Unit D/G with RFID (Code: P2BUTAE)
- P2 Adressable Emerg/Assistance Call Button Unit D/G with RFID (Code: P2BUTAEA)
- P2 Addressable Patient Call Button Unit D/G with RFID (Code:P2BUTAP)
- P2 Intelligent Slave Assistance Call Button Unit D/G with RFID (Code: P2BUTISA)
- P2 Intelligent Slave Emergency Call Button Unit D/G with RFID (Code: P2BUTISE)
- P2 Intelligent Slave Patient Call Button Unit D/G with RFID (Code: P2BUTISP)
- P2 Slave Assistance Call Button Unit D/G (Code: P2BUTSA)
- P2 Slave Emergency Call Button Unit D/G (Code: P2BUTSE)
- P2 Slave Patient Call Button Unit D/G (Code: P2BUTSP)
- P2 Slave Assistance Callbutton Unit S/G (Code: P2BUTSSA)
- P2 Slave Emergency Call button Unit S/G (Code: P2BUTSSE)
- P2 Slave Patient Call button Unit S/G (Code: P2BUTSSP)

*See P2 RFID for fob details

Physical Specification
Power Source: 12v to 13.8v DC
Current Drawn: 0.3A
Backbox: Double Gang UK

Datasheets

P2 Call Buttons

The P2 Call Button Series provides a way for staff or patients to initiate a call on the Pinpoint system from a static wall mounted point.
