P2 Pit

P2 PIT

(Personal Infrared Transmitter)
Designed to be hung at waist level for easy access in an emergency, the P2 PIT is a lightweight, robust device built to withstand the daily wear and tear of the work routine.
Performance
Precise and reliable, the P2 PIT alerts others to the exact location and nature of an incident, triggering a response when needed most.
Design
Discrete and lightweight, the P2 PIT is ideally suited to the environments in which is it found.
Connectivity
The P2 PIT triggers information signals to be sent in record time, taking just 85 milliseconds from activation to display.

Multiple Call Levels

For Assistance or Emergency

The P2 PIT has two call levels, Assistance and Emergency, which correspond to the severity of the incident in question. Pressing the button located on the bottom of the PIT raises the Assistance call, while pulling the PIT’s clear cap from the clip transmits the Emergency call.

High Speed

  • Intelligent infrared capabilities transmit an alarm instantly
  • Activation to display takes just 85 milliseconds
  • Quick response allows staff to react quickly and intervene

Enhanced Design

For daily use

The P2 PIT benefits from a discreet design that is unobtrusive and lightweight. Designed to be worn throughout a shift, it can be hung from the waistband without disturbing or distracting the user.

Additional Features

  • Incorporates antimicrobial technology to protect against spread of bacteria
  • Optional bungee grip prevents PIT body becoming separated from the user following emergency activation to prevent loss of equipment.
  • Magnetic connector facilitates more efficient charging
  • LED light clearly indicates battery level
  • Rubberised external materials create a good grip for staff to activate the Emergency call
The P2 PIT is a Personal Infrared Transmitter to be used by staff to activate the Pinpoint System. It can be used to activate either a single level of call (Emergency) or either of 2 levels of call (eg, Emergency + Assistance) depending on the model of the PIT. Activation is by either pressing the button on the base of the unit or by pulling the PIT from its retaining pin. Pulling the PIT from the retaining pin will activate an Emergency level of call, whereas pressing the button will activate the secondary feature. These are described in the Product Codes section.

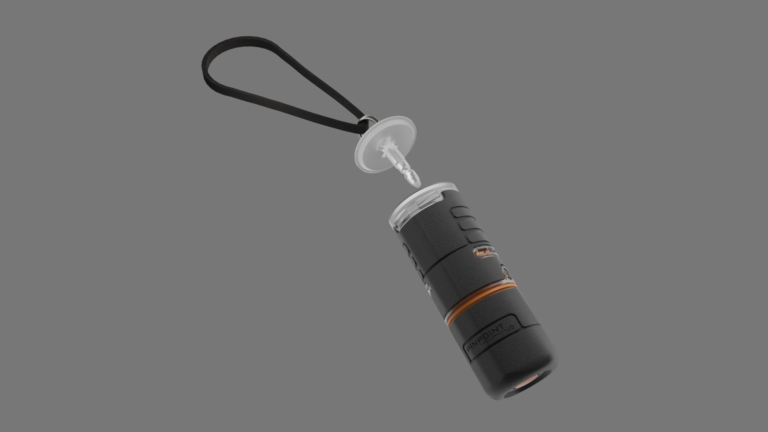

When the PIT has been pulled from its retaining pin several bursts of coded infrared light are immediately spread towards the receiver unit in the room. Therefore there is no need to point the PIT directly at the receiver units for the alarm to be triggered.

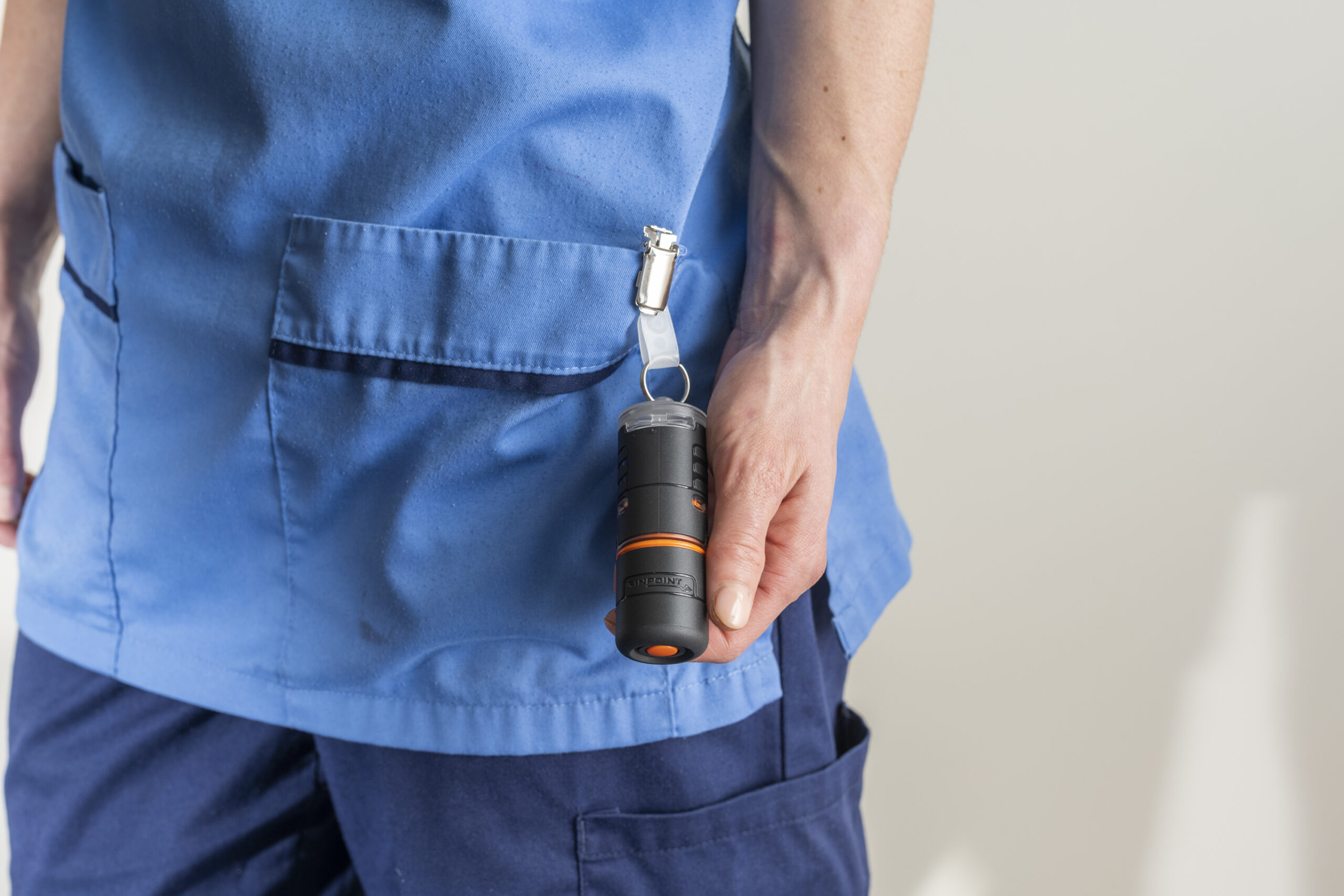

PITs should be worn at all times by staff and are recommended to be worn at waist level - this could be attached to the belt or to another suitable part of clothing by a “dog lead” hook, leather strap or a standard nurse/waistband clip to allow for easy access. In addition to this, an integral bungee loop has been added for unit retention.

Design
The design features a dual material, all over rubberised grip which is moulded directly onto a durable polycarbonate body; as well as a smooth textured, durable button for easy finding in panic situations. The rubberised grip has integrated Biomaster additive to inhibit the growth of a wide range of microbes, fungi and moulds over the entire lifespan or the product. The unit is assembled by a springclip and two retaining security (T6) screws to avoid unauthorised disassembly.

In addition, the transmitter features a battery level status LED, which shines through the top of the unit, giving the user a visual indication of the PIT’s power status - indicating if the unit needs its battery replaced or needs re-energising.

Specification

P2 PIT Battery Models Product Codes
P2 Battery PIT
With 5 Year No-Quibble Guarantee (Code: P2PITBAT5)

Single Code
Emergency Pull with NO Assistance push (Code: P2PITBATSC)

Twin Code
Emergency Pull with Assistance Button (Code: P2PITBAT)

Other
Emergency Pull with Test/Reset Button (Code: P2PITBATTR)

P2 PIT Perpetual Models Product Codes
P2 Perpetual PIT
With 5 Year No-Quibble Guarantee
(Code :P2PERP5)

Single Code
Emergency Pull with NO Assistance push (Code: P2PITPERPSC)

Twin Code
Emergency Pull with Assistance Button (Code: P2PITPERP)

Other
Emergency Pull with Test/Reset Button (Code: P2PITPERPTR)

P2 PIT Accessories
- Belt clip and Pin foor P2 PIT (Code: P2STRAPBC)
- Carabiner and Pin for P2 PIT (Code: P2STRAPCAR)
- Dog lead hook and Pin for P2 PIT (Code: P2STRAPDH)
- Leather Strap and Pin for P2 PIT (Code: P2STRAPL)
- Waistband Clip and Pin for P2 PIT (Code: P2STRAPW)


P2 PIT Physical Specifications
Power Source:
Battery: 6V Pinpoint OEM LR44 Cell (Product Code: 301(10 pack), 301.5(5 pack), 303 (25 pack), 304 (100
pack))
Perpetual: 5v 1.5F Supercapacitor

Size: Length 92mm x Diameter 31mm (Cylindrical)

Weight: Battery: TBC Perpetual: TBC

Biomaster: Yes

Guarantee: 5 Year No Quibble Guarantee + Extended Warranty available
Datasheets
P2 PIT

The P2 PIT is a Personal Infrared Transmitter to be used by staff to activate the Pinpoint System.

PIT Design Timeline

Combining over 30 years of experience with enhanced functionality and design, the P2 PIT offers a powerful security solution for your workplace.

pinpoint pIT

The very first Pinpoint PIT was created in Leven, Scotland
1992

316 PIT

Developments to the device results in the formation of a new product, the 316 PIT
2010

Perpetual
PIT

As new technology becomes available, the Perpetual PIT is released.
2010

P2 PIT

The Pinpoint team make the decision to revolution the System to better meet the needs of the modern workplace, with the P2 PIT at the heart of the new System.
2022

Always Innovating

Pinpoint continues to evolve and review its devices to enhance the workplaces of its users.
2025 +
